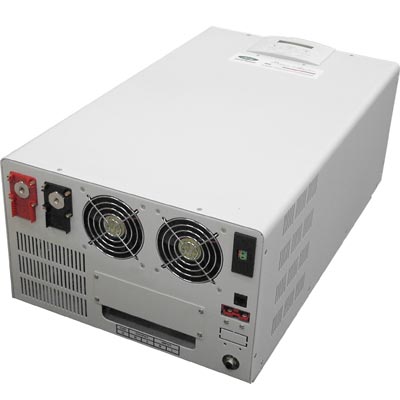

Inverter DC to AC PM-6000LC

Mã sản phẩm PM-6000LC

Số lượng

Thông tin tóm tắt sản phẩm

Inverter DC to AC PM-6000LC LCD display Multistage charger Fast Action AC Synchronized Transfer Switch Microprocessor based design Heat-Sink built in internal Soft Start AVR design

Hỗ trợ mua hàng

0987599957 - 01222544688

automation.saigon

dynamic_project

Inverter DC to AC PM-6000LC
Description:
PURE SINE WAVE inverter with built in AC Charger and LCD Display
Connect batteries and operate it as UPS.
This unit will be a UPS unit.

Specifications:

Model No.	PM-6000LC-48
Output Power Continuous	6000W
Max. Surge Power	12000W
1. Input Section
Input Nominal Voltage	110Vac or 220Vac
Input Voltage Range	60V~140Vac or 120V~280Vac
Line Low Transfer	60Vac ± 2% or 120Vac ± 2%
Line Low Return	65Vac ± 2% or 130Vac ± 2%
Line High Transfer	140Vac ± 2% or 280Vac ± 2%
Line High Return	130Vac ± 2% or 260Vac ± 2%
Input Frequency	50Hz / 60Hz (45Hz~70Hz)
2. Output Section
Output Voltage	100 / 110 / 115 / 120Vac or 200 / 220 / 230 / 240Vac re-settable via LCD panel
Waveform	Pure Sine Wave
Voltage Regulation (Batt. Mode)	< 3% RMS for entire battery voltage range
Output Frequency	50Hz or 60Hz ± 0.1Hz
Efficiency	> 80%
Maximum Load	Up to short circuit
Asymmetrical Load Max.	Up to nominal output power
Overload and Short Circuit Protection	Automatic disconnection
Overheating Temperature Protection	Acoustic warning before shut-off. Automatic restart
Power Factor	1.0
3. Battery Section
Voltage Range	48VDC (42~62VDC)
Backup Time (at full load)	Long time available
Input Frequency Range	45~70Hz
Max. Charging Current (3 steps selectable)	60/80/100Amp
4. Display
LCD Display	UPS status, I/P&O/P Voltage Frequency, Load%, Battery Voltage & %, Temperature, Model
LED Display	Normal (Green), Warning (Yellow), Fault (Red)
5. Audible Alarm
Battery Mode	Beeping every 4 seconds
Low Battery	Beeping every second
Overload	Beeping twice per second
Temperature Compensation (Option)	3mV /°C cell
6. General date
AC By Pass Time (UPS Mode)	< 8 ms.
Operation Temperature	-20 °C to +55 °C
Audible Noise	Less than 55dBA (at 1M)
Relative Humidity	0-95% non-condensing
Dimensions (L x W x H mm)	600 × 415 × 260
Weight (by Kg/s)	51.4
